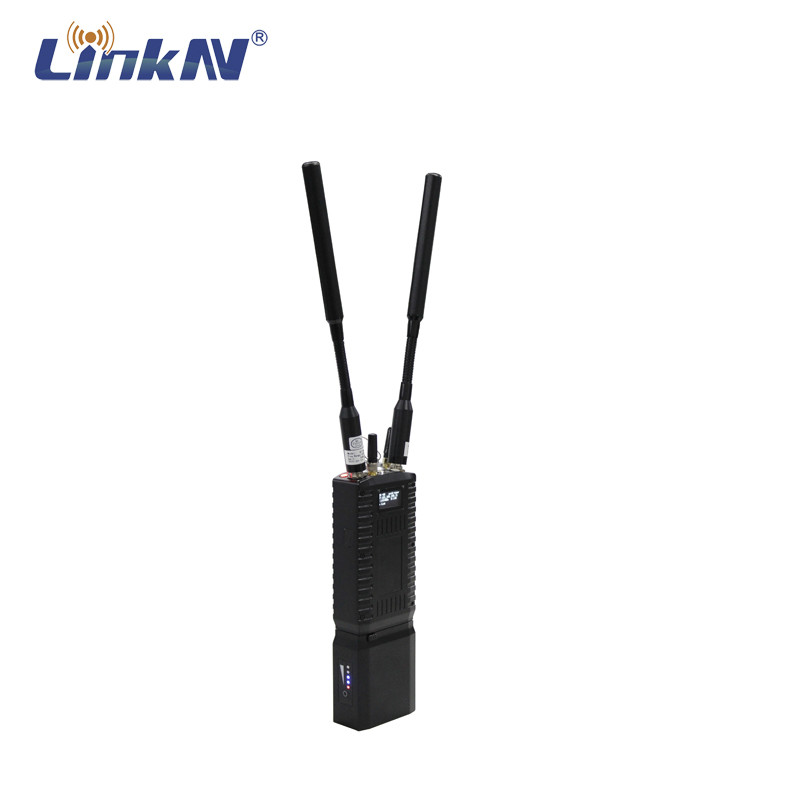

LKAV2201 IP Mesh Radio 4W MIMO IP66 AES256 350MHz-4GHz Customizable

IP Mesh Radio 4W MIMO IP66 AES256 350MHz-4GHz Customizable

Introduction
IP Mesh Radio (MANET), 4W MIMO, IP66, removable battery with DC charging port, with micro HDMI input, support intercom, 2.4/5.8G WiFi and GPS, up to 80Mbps and 1-2km NLOS each hop.

The MANET2201 is a wireless IP mesh node, it can transmit audio, video and IP data in real time, and its multi-hop relay can increase the wireless transmission distance. Its self-organizing network automatically selects the path, and the network mode is flexible. It has strong anti-blocking and anti-interference performance, and is very suitable for mobile communication under complex environment. It can be applied to Public Security, Armed Police, Fire Control, Civil Air Defense, , EOD Robot and UGV to establish real-time and rapid communication and unified coordination and command.



Features
■ Infrastructure-less, self configuring and self healing
■ Frequency 1400MHz-1480MHz (350MHz-4GHz customizable)
■ Data rate up to 80Mbps
■ Range up to 1-2km NLOS
■ Supports up to 9 hops and no less than 50 nodes
■ Full transparent IP data transmission
■ Supports two-way intercom
■ HDMI input as optional
■ Supports 2.4G/5.8G WIFI connection
■ Supports AES256 encryption
■ Battery endurance up to 4-5 hours
■ Rugged IP65 housing
■ Low system latency

Specification




Panel Description


① Signal Indicator


② Mic Input Interface
③ LAN Input Interface
④ WIFI Antenna Interface
⑤ Mesh Antenna Interface
⑥ GPS/BD Antenna Interface
⑦ Power Push Button
⑧ Mesh Antenna Interface

Topology Diagram




■ Chain Type

■ Star Type

■ Mesh Type

■ Random Type

Application


Tool Box Kit
