LKAV1614 10-20KM Drone Mini COFDM Video Transmitter For Airborne Module

1
MOQ
USD, RMB
Price
LKAV1614 10-20KM Drone Mini COFDM Video Transmitter For Airborne Module
Features Gallery Product Description Request A Quote
Features
Specifications
Modulation: COFDM
Encryption: AES256
Narrow Bandwidth: 2MHz~8MHz
HDMI: 1080P
Distance: 10-20km
Guard Interval: 1/4,1/8,1/16,1/32
Application: Airborne Communicate
Highlight:

professional wireless video transmitter

,

20KM COFDM Video Transmitter

,

Mini COFDM Video Transmitter
Basic Infomation
Place of Origin: Shenzhen China
Brand Name: OEM / LinkAV
Certification: CE
Model Number: LKAV-1614
Payment & Shipping Terms
Packaging Details: Brown Carton
Delivery Time: Negotiable
Payment Terms: T/T, PayPal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Product Description





Introduction



The LKAV-1614 is a COFDM wireless video transmitter specially designed for UAV applications. With advanced COFDM and H.264 technologies at its core, it enables to establish rugged wireless video link under all environments including high-speed mobile. The compact size makes it ideally for UAV installations.





Features



  • HDMI and CVBS dual video inputs
  • 60-80ms low system latency
  • Range up to 10-20km LOS
  • Frequency 300MHz-2.7GHz customizable
  • Rugged aluminum alloy housing
  • Compact size and light weight
  • AES256 encryption



Specification



Transmission Characteristics
Modulation COFDM
Modulation Type QPSK(4QAM), 16QAM, 64QAM
Frequency 300MHz-2.7GHz (Default 700MHz)
Transmit Power 30dBm
RF Bandwidth 2-8MHz
FEC 1/2, 2/3, 3/4, 7/8
Guard Interval 1/4, 1/8, 1/16, 1/32
Transmission Range Air-to-ground up to 20km, LOS
Data Characteristics
Video Input

HDMI: 1080p/1080i/720p/720i…(self-adaption)

AV: 720x480/60i (NTSC), 720x576/50i (PAL) (self-adaption)
Video Compression H.264
RF Interface SMA F head
Control Method Using the LED Control Box
Encryption AES256 (supports to set password)
Electrical Characteristics
Working Voltage DC12V
Working Current ≤1.2A (@12V)
Power Consumption ≤14.37dBm
Physical Characteristics
Weight 105g
Dimensions 77x54x23.5mm
Working Temp. -20℃~70℃

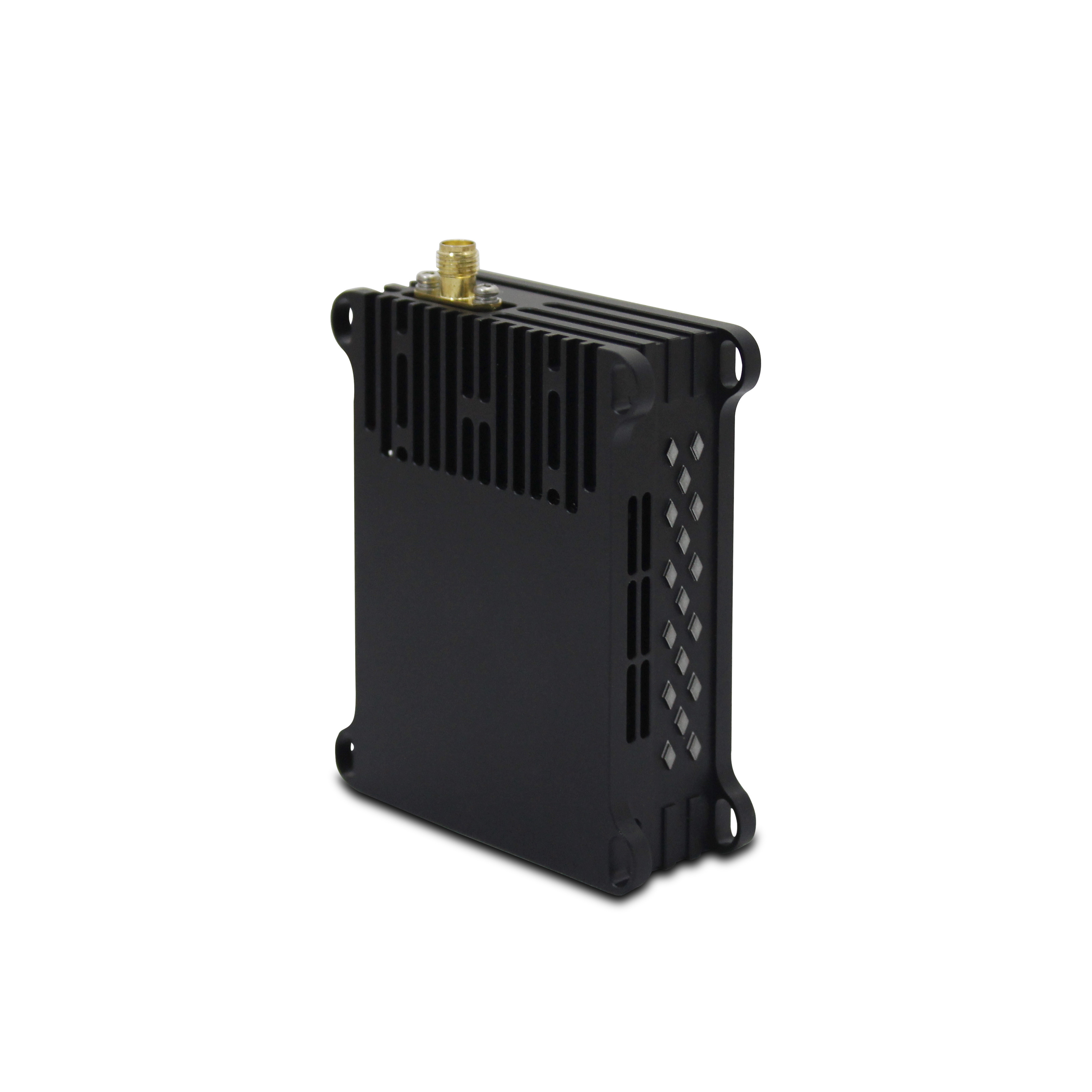

LKAV1614 10-20KM Drone Mini COFDM Video Transmitter For Airborne Module 0

  1. Antenna interface – SMA F

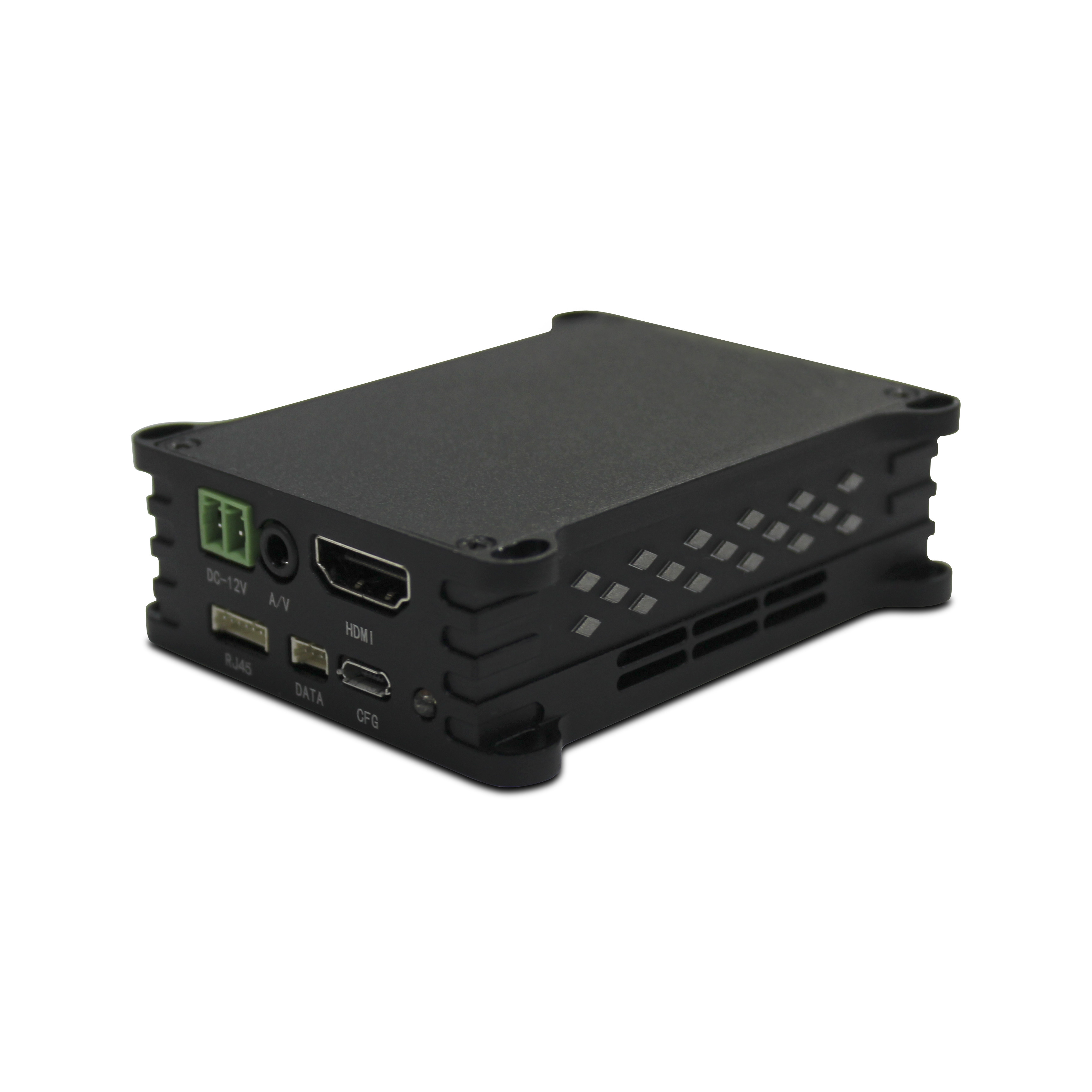

LKAV1614 10-20KM Drone Mini COFDM Video Transmitter For Airborne Module 1

  1. Power input – 2-pin, DC 12V
  2. AV video input – CVBS, analog SD
  3. HDMI video input – digital HD
  4. RJ45 port – reserved
  5. Data port – reserved
  6. CFG port – configuring port
  7. Power indicator – red light

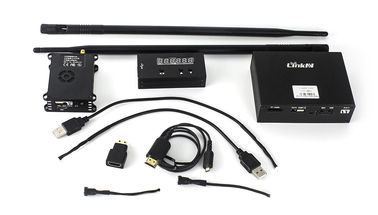

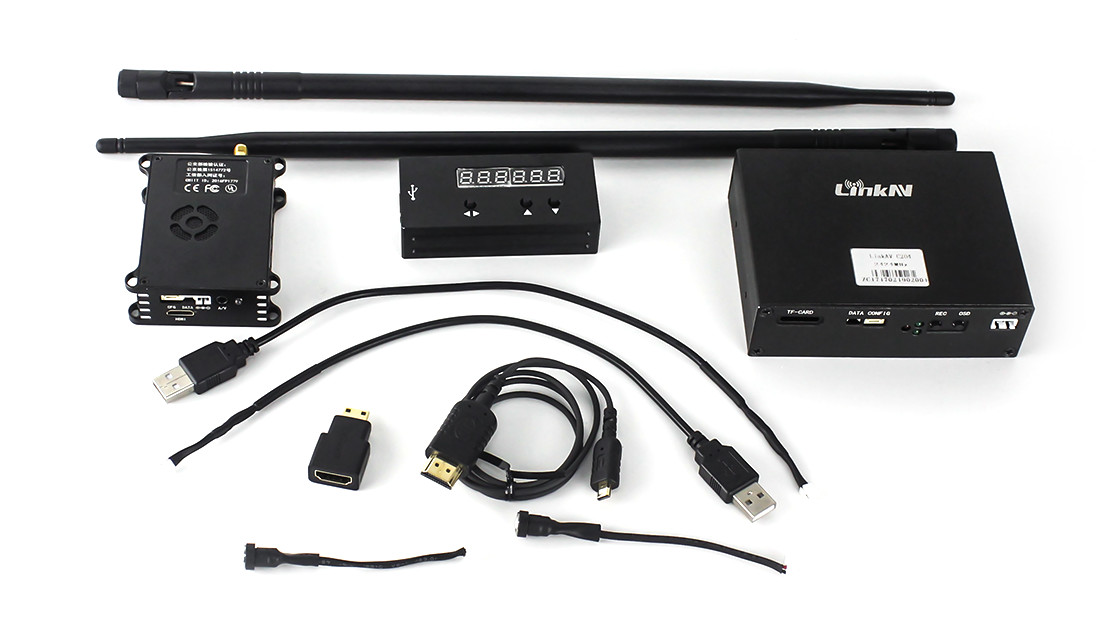

Application

LKAV1614 10-20KM Drone Mini COFDM Video Transmitter For Airborne Module 2

LKAV1614 10-20KM Drone Mini COFDM Video Transmitter For Airborne Module 3
