FHSS Manpack MANET Radio Base Station High Power Output AES256 Battery Powered
Introduction

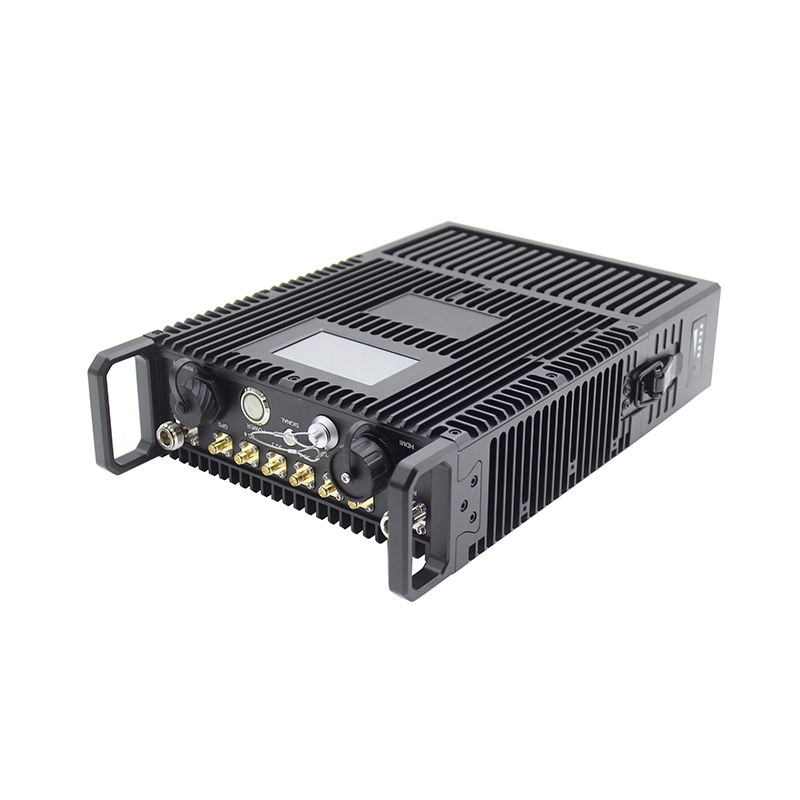

The MANE9205 is a rugged MANET (Mobile Ad Hoc Network) transceiver, output power customizable. Based on FPGA solution, it supports FHSS (Frequency Hopping) and IFS (Intelligent Frequency Selection). It is ideal for a variety of tactical mesh deployments such as Public Security, Armed Police, Fire Control, Military and Robot. Its multi-hop ability can largely increase the transmission distance. The up to 112Mbps data rate allows it to transmit video, data and audio at the same time easily. The AES encryption ensures the security of data transmission.
Features
■ Supports Mobile Ad Hoc Network (MANET)
■ Frequency 1300-1500MHz (70MHz-6GHz customizable)
■ Supports FHSS and IFS (Intelligent Frequency Selection)
■ AES128/AES256 encryption as optional
■ Power output customizable
■ Supports WIFI and 5G/4G (Optional)
■ 28/56/112Mbps data rate as optional
■ 2/4/8/32/64/128/256 nodes as optional
■ Supports PTT voice intercom
■ Supports GPS/BD/GLONASS (GNSS)
■ Full transparent IP data transmission
■ Supports Web management
■ The API is available for further development
■ With LCD to show the device parameters in real time
■ HDMI input as optional
■ Rugged IP66 housing
Specification
| RF Parameters | |
| Default Frequencies | 1200-1400MHz (70MHz-6GHz customizable) |
| Channel Bandwidth | 2.5/5/10/20/30/40MHz (40MHz optional) |
| RF Waveform | TDD-COFDM (2T2R) |
| Output Power | 2x20W, 1dBm step adjustable |
| Receive Sensitivity | -103dBm@5MHz |
| Modulation Type | QPSK/16QAM/64QAM/256QAM/1024QAM (adaptive) |
| FHSS | Optional (>1000 hop/s) |
| IFS | Optional |
| Network Parameters | |
| Network Size | 2/4/8/32/64/128/256 nodes as optional |
| Multi-hop Capability | 15 hops (short messages); 10 hops (voice) ; 8 hops (video) |
| Range | 200-300km Air-to-Ground LOS |
| Communication rate |
48Mbps@20MHz (Option-1); 56Mbps@20MHz (Option-2); 112Mbps@40MHz (Option-3); |
| Delay | 7ms@2.5MHz/hop |
| Movement Speed | >1000km/h |
| Start Time | 27s |
| Positioning | GPS/BD/GLONASS (GNSS) |
| Network Access Time | <1s |
| Network Extension | WIFI AP/4G Router (optional) |
| Electrical Parameters | |
| Working Voltage | 25.2VDC |
| Power Consumption | 162W |
| Battery Life | 6 hours |
| Physical/Environment | |
| Weight | 4.9kg (with battery) |
| Dimensions | 330*220*75mm |
| IP Rating | IP66 |
| Working Temp. | -40°C~65°C |
| Interface | |
| LAN interface | *1 |
| Voice Interface | PTT Mic (7-pin LEMO connector*1) |
| Video Interface | HDMI (optional) |

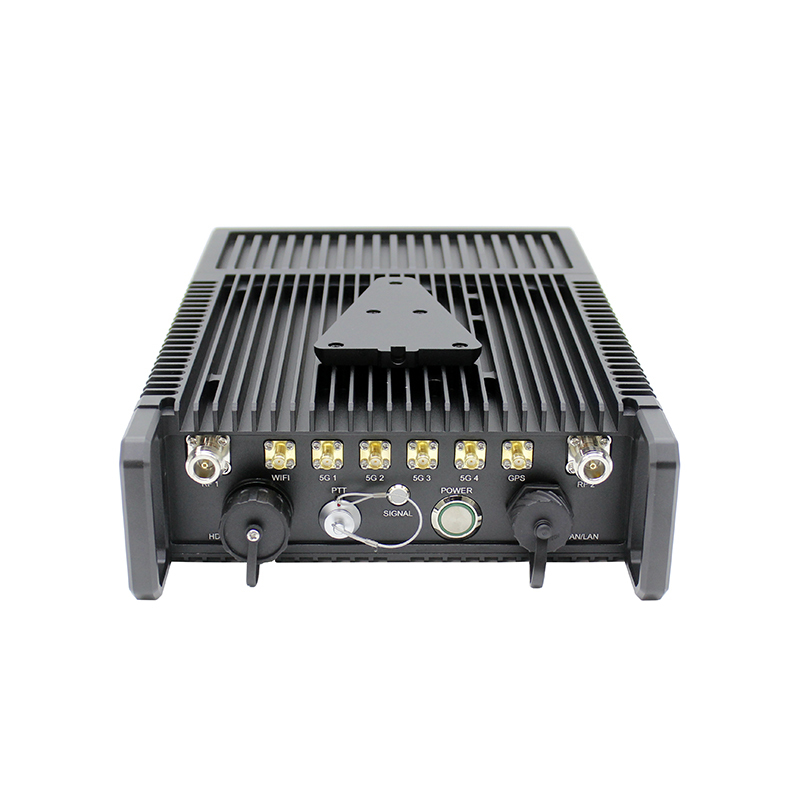

Panel Description
